Magnetism Physics Labware
Showing 16–30 of 48 results
-
Magnetism Physics Labware

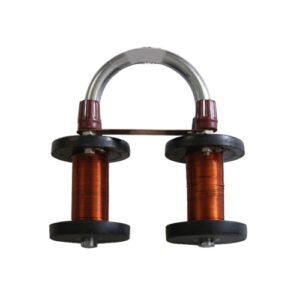

Electromagnet
It comprises mild steel U-shaped bar of circular cross section fitted with bobbins, wound with heavy gauge copper wire and the ends are ground very flat to make good magnetic contact with the iron armature. The connections of the bobbins are made to ensure that direction of winding each pole is obvious. Supplied with carrying hook, operates on 4-6 volts d.c. Supplied with keeper with hook. Length x Bar dia (mm) : 100 x 12, 150 x 12, 100 x 15, 150 x 15.
SKU: n/a -
Magnetism Physics Labware
Force on a conductor balance
Force on a conductor balance – It is used to demonstrate that when a current is passed through a conductor in a magnetic field, it is subjected to a force of attraction or repulsion depending upon the direction of current in it. It consists of a plastic base 160 x 140mm on which two contact pillars are mounted. Each pillar is provided with an external circuit. A balance beam is supported by the pillars on two bearings, which form the fulcrum. Two screwed masses are provided in the beam system, one moving vertically for the adjustment of sensitivity and the other moving horizontally for the adjustment of the equilibrium position, when no current is flowing. Scale marked 0 to 75 x 1mm, rider of 1 gm weight.
SKU: n/a -
Magnetism Physics Labware

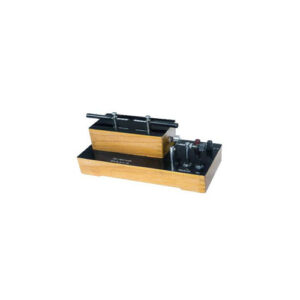

Induction Coil (Ruhmkorff Coil)
Induction Coil (Ruhmkorff Coil ) for Physics Lab – The primaries are wound with thicker copper enamelled covered wire on letherite pipe in two layers. The secondary coils are divided into two parts & are given heavy insulation. Each layer is wound in a cover of butter paper & are completing the winding, the entire is dipped into hot wax to seal each layer against moisture effect. The coils are housed in a teakwood base, voltage tested condensers are fitted inside the wooden polished base. Handles to get the spark are fitted on it & make or break points are of silver. One point is adjustable to get any cycle. On/off reversing switch commutator working on 6 to 12 V DC. Size – 10 mm, 25 mm, 50 mm, 75 mm, 100 mm
SKU: n/a -
Magnetism Physics Labware
Induction Coil Demonstration Model
Demonstration Induction Coils consists of two coils wound on separate bobbins, one having many turns of fine wire & the other with few turns of heavy wire. It demonstrates that induced potentials are produced either by movement of a permanent or electromagnet or by a change of current in one coil, fitted with insulated 4 mm socket terminals & supplied with a soft iron core, outer coil is 12.5 cm long & is of 5 cm diameter.
SKU: n/a -
Magnetism Physics Labware
Magnetic Field Apparatus
Apparatus To Show Force On Conductor In Magnetic Field – Comprising a strong U-shaped magnet and a pair of brass rails with 4mm socket terminals. A brass axle with plastic discs is free to roll along the rails and completes the electrical contact between them. When the axle is placed on the rails between the poles of the magnet, and a power supply unit is connected, the axle rolls along the rails, away from the centre of the magnetic field. Apparatus To Show Force On Conductor In Magnetic Field for Magnetism Experiment in Physics Lab.
SKU: n/a -
Magnetism Physics Labware

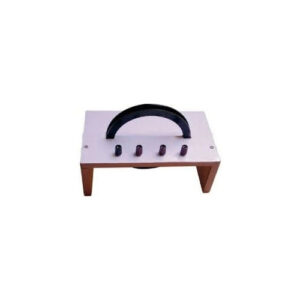

Magnetic Field Table
A wooden table supports an aluminium ring wound with three coils of 18 SWG enamelled copper wire of 5, 10 & 20 turns respectively, connected to bakelite 4 mm socket terminals at one edge of the board. The table is 400 x 275 x 90 mm . Overall height of the apparatus is 170 mm
SKU: n/a
